Complete specification
| Section | Specification | Details |
|---|---|---|
| Network | Speed | HSPA 42.2/5.76 Mbps, LTE (3CA) Cat9 450/50 Mbps |
| 2G bands | GSM 850 / 900 / 1800 / 1900 - SIM 1 & SIM 2 | |
| 3G bands | HSDPA 850 / 900 / 1900 / 2100 | |
| 4G bands | 1, 3, 4, 5, 7, 8, 12, 20, 34, 38, 39, 40, 41 | |
| Technology | GSM / CDMA / HSPA / LTE | |
| Launch | Status | Discontinued |
| Announced | 2017, June. Released 2017, June | |
| Body | SIM | Nano-SIM + Nano-SIM |

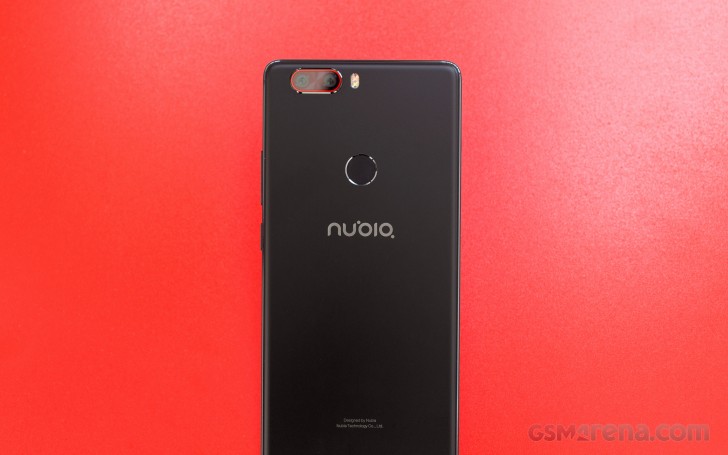

| Build | Glass front (Gorilla Glass), aluminum back, aluminum frame | |
| Weight | 173 g (6.10 oz) | |
| Dimensions | 152.6 x 72.4 x 7.6 mm (6.01 x 2.85 x 0.30 in) | |
| Display | Size | 5.5 inches, 82.6 cm2 (~74.7% screen-to-body ratio) |
| Type | IPS LCD | |
| Protection | Corning Gorilla Glass (unspecified version) | |
| Resolution | 1080 x 1920 pixels, 16:9 ratio (~403 ppi density) | |
| Platform | OS | Android 7.1.1 (Nougat), nubia UI 5 |
| CPU | Octa-core (4x2.35 GHz Kryo & 4x1.9 GHz Kryo) | |
| GPU | Adreno 540 | |
| Chipset | Qualcomm MSM8998 Snapdragon 835 (10 nm) | |
| Memory | Internal | 64GB 6GB RAM, 64GB 8GB RAM, 128GB 6GB RAM, 128GB 8GB RAM |
| Card slot | No | |
| Main Camera | Dual | 12 MP, f/1.8, 1/2.55", 1.4µm, PDAF, 2x lossless zoom 23 MP, f/2.0, AF |
| Video | 4K@30fps, 1080p@30fps | |
| Features | Dual-LED dual-tone flash, HDR, panorama | |
| Selfie camera | Video | 1080p@30fps |
| Single | 16 MP, f/2.0, 26mm (wide), 1/3.06", 1.0µm | |
| Sound | 3.5mm jack | No |
| Loudspeaker | Yes | |
| [optionalother] | 24-bit/192kHz audio | |
| Comms | NFC | Yes |
| USB | USB Type-C, OTG | |
| WLAN | Wi-Fi 802.11 a/b/g/n/ac, dual-band, Wi-Fi Direct, DLNA | |
| Radio | No | |
| Bluetooth | 4.1, A2DP, LE | |
| Positioning | GPS, GLONASS, BDS | |
| Infrared port | Yes | |
| Features | Sensors | Fingerprint (rear-mounted), accelerometer, gyro, proximity, compass |
| Battery | Type | Li-Po 3200 mAh, non-removable |
| Charging | 18W wired, QC4, 50% in 25 min | |
| Misc | Price | About 300 EUR |

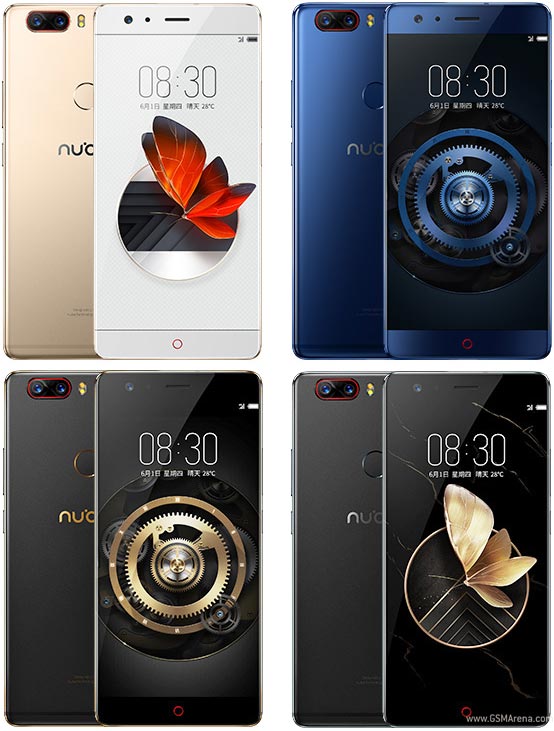

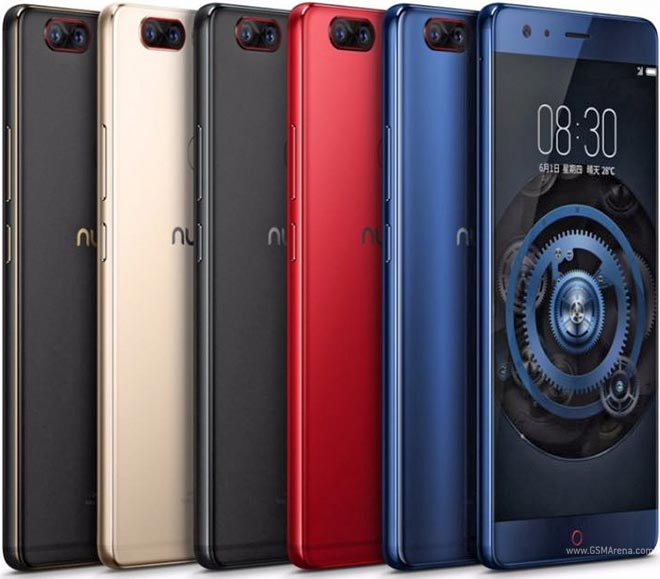

| Colors | Aurora Blue, Black Gold, Obsidian Black, Solar Gold, Flame Red | |
| Models | NX563J | |
| Our Tests | Camera | Photo / Video |
| Display | Contrast ratio: 1451 (nominal), 3.159 (sunlight) | |
| Loudspeaker | Voice 62dB / Noise 71dB / Ring 73dB | |
| Performance | GeekBench: 6622 (v4.4) GFXBench: 25fps (ES 3.1 onscreen) | |
| Audio quality | Noise -94.1dB / Crosstalk -84.1dB | |
| Battery (old) | Endurance rating 81h |
