Complete specification
| Section | Specification | Details |
|---|---|---|
| Network | Speed | HSPA 42.2/5.76 Mbps, LTE Cat4 150/50 Mbps (E5803), LTE Cat6 300/50 Mbps (E5823) |
| 2G bands | GSM 850 / 900 / 1800 / 1900 | |
| 3G bands | HSDPA 850 / 900 / 1900 / 2100 - E5803, E5823 | |
| 4G bands | 1, 2, 3, 4, 5, 7, 8, 12, 17, 20, 28, 38, 40 - E5803, E5823 | |
| Technology | GSM / HSPA / LTE | |
| Launch | Status | Discontinued |
| Announced | 2015, September. Released 2015, October | |
| Body | SIM | Nano-SIM |
| Build | Glass front, glass back, plastic frame | |
| Weight | 138 g (4.87 oz) | |
| Dimensions | 127 x 65 x 8.9 mm (5.0 x 2.56 x 0.35 in) | |
| [bodyother] | IP68 dust tight and water resistant (immersible up to 1.5m for 30 min) | |
| Display | Size | 4.6 inches, 56.9 cm2 (~68.9% screen-to-body ratio) |
| Type | IPS LCD | |
| Protection | Scratch-resistant glass, oleophobic coating | |
| Resolution | 720 x 1280 pixels, 16:9 ratio (~323 ppi density) | |
| [displayother] | Triluminos display X-Reality Engine | |
| Platform | OS | Android 5.1.1 (Lollipop), upgradable to 7.1.1 (Nougat) |
| CPU | Octa-core (4x1.5 GHz Cortex-A53 & 4x2.0 GHz Cortex-A57) | |
| GPU | Adreno 430 | |
| Chipset | Qualcomm MSM8994 Snapdragon 810 (20 nm) | |
| Memory | Internal | 32GB 2GB RAM |
| Card slot | microSDXC (dedicated slot) | |
| [memoryother] | eMMC 5.0 | |
| Main Camera | Video | 4K@30fps, 1080p@60fps, 720p@120fps, HDR |
| Single | 23 MP, f/2.0, 24mm (wide), 1/2.3", PDAF | |
| Features | LED flash, HDR, panorama | |
| Selfie camera | Video | 1080p@30fps |
| Single | 5.1 MP, f/2.4 | |
| Features | HDR | |
| Sound | 3.5mm jack | Yes |
| Loudspeaker | Yes, with stereo speakers | |
| [optionalother] | 24-bit/192kHz audio | |
| Comms | NFC | Yes |
| USB | microUSB 2.0 (MHL 3 TV-out), OTG | |
| WLAN | Wi-Fi 802.11 a/b/g/n/ac, dual-band, Wi-Fi Direct, DLNA, hotspot | |
| Radio | FM radio, RDS | |
| Bluetooth | 4.1, A2DP, aptX | |
| Positioning | GPS, GLONASS/ BDS (market dependant) | |
| Features | Sensors | Fingerprint (side-mounted; EU model only), accelerometer, gyro, proximity, compass, barometer |
| [featuresother] | ANT+ | |
| Battery | Type | Li-Ion 2700 mAh, non-removable |
| Charging | 18W wired, QC2 | |
| Stand-by | Up to 520 h (2G) / Up to 520 h (3G) | |
| Talk time | Up to 11 h 30 min (2G) / Up to 14 h 50 min (3G) | |
| Music play | Up to 77 h | |
| Misc | SAR | 0.97 W/kg (head) 0.72 W/kg (body) |
| Price | About 200 EUR | |

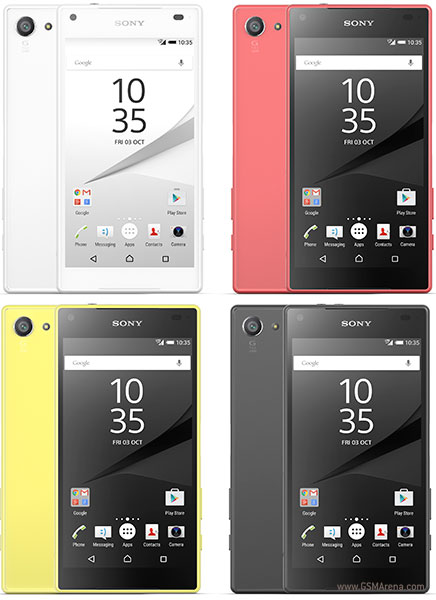

| Colors | White, Graphite Black, Yellow, Coral | |
| Models | SO-02H, E5823, E5803 | |
| SAR EU | 1.07 W/kg (head) 0.71 W/kg (body) | |
| Our Tests | Camera | Photo / Video |
| Display | Contrast ratio: 1053 (nominal), 2.78(sunlight) | |
| Loudspeaker | Voice 66dB / Noise 65dB / Ring 70dB | |
| Performance | Basemark OS II 2.0: 1440 Basemark X: 23703 | |
| Audio quality | Noise -95.9dB / Crosstalk -94.4dB | |
| Battery (old) | Endurance rating 86h |
