Complete specification
| Section | Specification | Details |
|---|---|---|
| Network | Speed | HSPA, LTE |
| 2G bands | GSM 900 / 1800 | |
| 3G bands | HSDPA 900 / 2100 | |
| 4G bands | 2, 4, 5 - USA | |
| Technology | GSM / HSPA / LTE | |
| Launch | Status | Discontinued |
| Announced | 2017, March. Released 2017, May | |
| Body | SIM | eSIM |

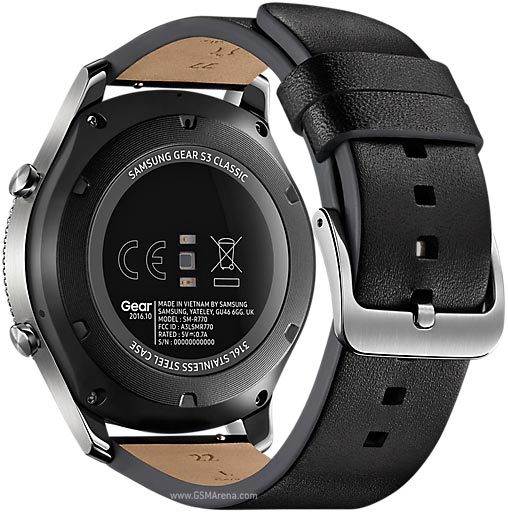

| Build | Glass front (Gorilla Glass SR+), stainless steel 316L frame | |
| Weight | 57 g (2.01 oz) | |
| Dimensions | 49 x 46 x 12.9 mm (1.93 x 1.81 x 0.51 in) | |

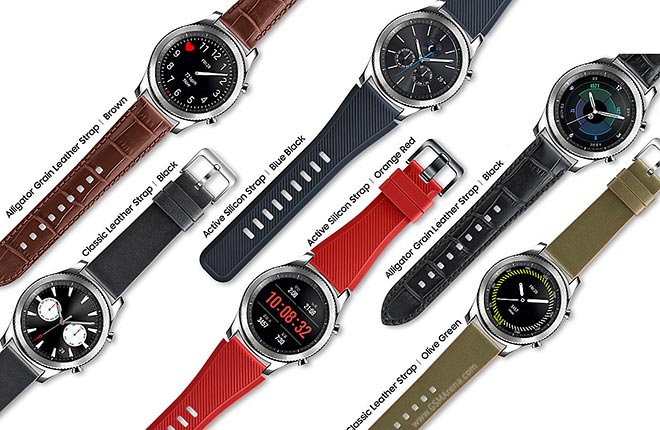

| [bodyother] | IP68 dust tight and water resistant (immersible up to 1.5m for 30 min) Compatible with standard 22mm straps | |
| Display | Size | 1.3 inches |
| Type | Super AMOLED | |
| Protection | Corning Gorilla Glass SR+ | |
| Resolution | 360 x 360 pixels (~392 ppi density) | |
| [displayother] | Rotating bezel | |
| Platform | OS | Tizen OS 5.5 |
| CPU | Dual-core 1.0 GHz Cortex-A53 | |
| Chipset | Exynos 7 Dual 7270 (14 nm) | |
| Memory | Internal | 4GB 768MB RAM |
| Card slot | No | |
| Sound | 3.5mm jack | No |
| Loudspeaker | Yes | |
| Comms | NFC | Yes |
| USB | No | |
| WLAN | Wi-Fi 802.11 b/g/n | |
| Radio | No | |
| Bluetooth | 4.2, A2DP, LE | |
| Positioning | GPS, GLONASS | |
| Features | Sensors | Accelerometer, gyro, heart rate, barometer |
| [featuresother] | S-Voice natural language commands and dictation MP3/M4A/AAC/WAV player Photo viewer Voice memo/dial/commands Samsung Pay | |
| Battery | Type | Li-Ion 380 mAh, non-removable |
| Charging | Wireless (Qi) | |
| Stand-by | Up to 72 h (3G) | |
| Misc | Price | About 330 EUR |
| Colors | Silver | |
| Models | SM-R775S | |
| Camera | [cam1modules] | No |
