Complete specification
| Section | Specification | Details |
|---|---|---|
| Network | Speed | HSPA, LTE |
| 2G bands | GSM 850 / 900 / 1800 / 1900 | |
| 3G bands | HSDPA 850 / 900 / 1900 / 2100 | |
| 4G bands | 3, 7, 8, 20 | |
| Technology | GSM / HSPA / LTE | |
| Launch | Status | Discontinued |
| Announced | 2014, June. Released 2014, July | |
| Body | SIM | Micro-SIM |
| Build | Glass front, plastic back, plastic frame | |
| Weight | 298 g (10.51 oz) | |
| Dimensions | 212.8 x 125.6 x 6.6 mm (8.38 x 4.94 x 0.26 in) | |
| Display | Size | 8.4 inches, 204.6 cm2 (~76.5% screen-to-body ratio) |
| Type | Super AMOLED | |
| Resolution | 1600 x 2560 pixels, 16:10 ratio (~359 ppi density) | |
| Platform | OS | Android 4.4.2 (KitKat), upgradable to 6.0 (Marshmallow), TouchWiz UI |
| CPU | Quad-core 2.3 GHz Krait 400 (S800) Quad-core 1.9GHz Cortex-A15 & quad-core 1.3 GHz Cortex-A7 (Exynos 5420) | |
| GPU | Adreno 330 (S800) Mali-T628MP6 (Exynos 5420) | |
| Chipset | Qualcomm Snapdragon 800 (28 nm) Exynos Octa 5420 (28 nm) | |
| Memory | Internal | 16GB 3GB RAM, 32GB 3GB RAM |
| Card slot | microSDXC (dedicated slot) | |
| [memoryother] | eMMC 4.5 | |
| Main Camera | Video | 1080p@30fps |
| Single | 8 MP, AF | |
| Features | LED flash | |
| Selfie camera | Single | 2.1 MP |
| Sound | 3.5mm jack | Yes |
| Loudspeaker | Yes, with stereo speakers | |
| Comms | NFC | No |
| USB | microUSB 2.0 (MHL), OTG | |
| WLAN | Wi-Fi 802.11 a/b/g/n/ac, dual-band, Wi-Fi Direct, hotspot | |
| Radio | No | |
| Bluetooth | 4.0, A2DP, LE | |
| Positioning | GPS, GLONASS, BDS | |
| Infrared port | Yes | |
| Features | Sensors | Fingerprint (front-mounted), accelerometer, gyro, proximity, compass |
| [featuresother] | ANT+ | |
| Battery | Type | Li-Ion 4900 mAh, non-removable |
| Talk time | Up to 29 h (3G) | |
| Music play | Up to 80 h | |
| Misc | SAR | 0.63 W/kg (head) 1.56 W/kg (body) |
| Price | About 370 EUR | |

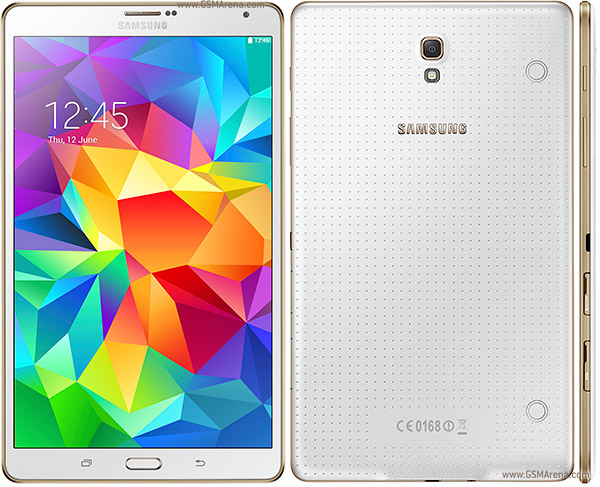

| Colors | Dazzling White, Titanium Bronze | |
| Models | SM-T705, SM-T705C | |
| SAR EU | 0.26 W/kg (head) 0.99 W/kg (body) | |
| Our Tests | Display | Contrast ratio: Infinite (nominal) |
| Loudspeaker | Voice 68dB / Noise 66dB / Ring 75dB | |
| Audio quality | Noise -95.7dB / Crosstalk -96.0dB |
