Complete specification
| Section | Specification | Details |
|---|---|---|
| Network | Speed | HSPA 42.2/5.76 Mbps, LTE Cat6 300/50 Mbps |
| 2G bands | GSM 850 / 900 / 1800 / 1900 | |
| 3G bands | HSDPA 850 / 900 / 1900 / 2100 | |
| 4G bands | 1, 2, 3, 5, 7, 8, 20 | |
| Technology | GSM / HSPA / LTE | |
| Launch | Status | Discontinued |
| Announced | 2014, October. Released 2014, November | |
| Body | SIM | Micro-SIM |
| Weight | 145 g (5.11 oz) | |
| Dimensions | 142 x 72.5 x 8.1 mm (5.59 x 2.85 x 0.32 in) | |
| [bodyother] | IP67 dust/water resistant (up to 1m for 30 min) | |
| Display | Size | 5.1 inches, 71.7 cm2 (~69.6% screen-to-body ratio) |
| Type | Super AMOLED | |
| Protection | Corning Gorilla Glass 3 | |
| Resolution | 1080 x 1920 pixels, 16:9 ratio (~432 ppi density) | |
| Platform | OS | Android 4.4.2 (KitKat), TouchWiz UI |
| CPU | Quad-core 2.5 GHz Krait 450 | |
| GPU | Adreno 420 | |
| Chipset | Qualcomm APQ8084 Snapdragon 805 (28 nm) | |
| Memory | Internal | 16GB 2GB RAM, 32GB 2GB RAM |
| Card slot | microSDXC (dedicated slot) | |
| [memoryother] | eMMC 5.0 | |
| Main Camera | Video | 4K@30fps, 1080p@30/60fps, 720p@120fps, HDR, stereo sound rec. |

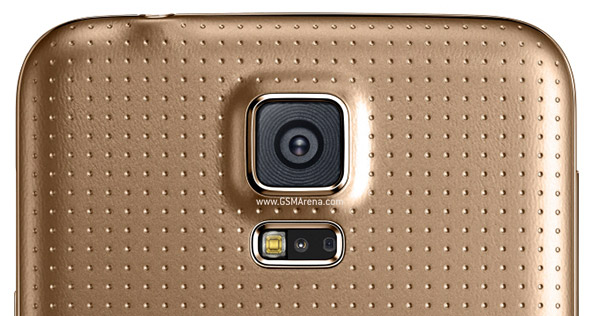

| Single | 16 MP, 1/2.6", 1.12µm, PDAF | |
| Features | LED flash, panorama, HDR | |
| Selfie camera | Video | 1080p@30fps |
| Single | 2 MP | |
| Sound | 3.5mm jack | Yes |
| Loudspeaker | Yes | |
| [optionalother] | 24-bit/192kHz audio | |
| Comms | NFC | Yes |
| USB | microUSB 3.0 (MHL 2.1 TV-out), OTG | |
| WLAN | Wi-Fi 802.11 a/b/g/n/ac, dual-band, Wi-Fi Direct, hotspot | |
| Radio | No | |
| Bluetooth | 4.0, A2DP, EDR, LE, aptX | |
| Positioning | GPS, GLONASS, BDS | |
| Infrared port | Yes | |
| Features | Sensors | Fingerprint (front-mounted), accelerometer, gyro, proximity, compass, barometer, gesture, heart rate |
| [featuresother] | ANT+ S-Voice natural language commands and dictation Air gestures | |
| Battery | Type | Li-Ion 2800 mAh, removable |
| Charging | Wireless (Qi) (market dependent) | |
| Talk time | Up to 20 h (3G) | |
| Music play | Up to 75 h | |
| Misc | SAR | 1.09 W/kg (head) 1.29 W/kg (body) |
| Price | About 380 EUR | |

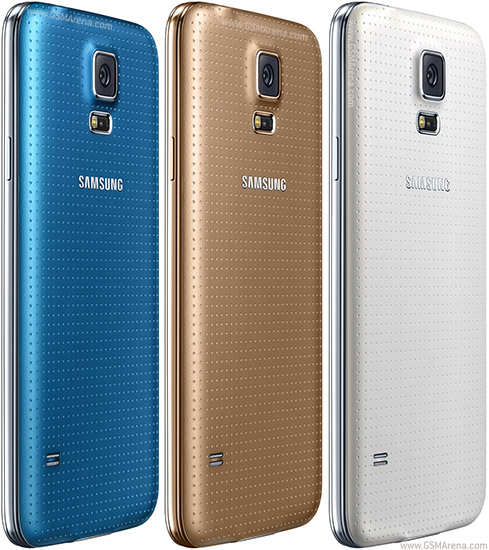

| Colors | Charcoal Black, Copper Gold, Electric Blue, Shimmery White | |
| Models | SM-G901F | |
| SAR EU | 0.61 W/kg (head) 0.38 W/kg (body) |
