Complete specification
| Section | Specification | Details |
|---|---|---|
| Network | Speed | HSPA 42.2(LTE)/21.1(3G)/5.76 Mbps, LTE Cat4 150/50 Mbps |
| 2G bands | GSM 850 / 900 / 1800 / 1900 | |
| 3G bands | HSDPA 850 / 900 / 1900 / 2100 | |
| 4G bands | 1, 3, 5, 7, 8, 20 - G800F | |
| Technology | GSM / HSPA / LTE | |
| Launch | Status | Discontinued |
| Announced | 2014, June. Released 2014, July | |
| Body | SIM | Micro-SIM |
| Weight | 120 g (4.23 oz) | |
| Dimensions | 131.1 x 64.8 x 9.1 mm (5.16 x 2.55 x 0.36 in) | |
| [bodyother] | IP67 dust/water resistant (up to 1m for 30 min) | |
| Display | Size | 4.5 inches, 55.8 cm2 (~65.7% screen-to-body ratio) |
| Type | Super AMOLED | |
| Resolution | 720 x 1280 pixels, 16:9 ratio (~326 ppi density) | |
| Platform | OS | Android 4.4.2 (KitKat), upgradable to 5.1.1 (Lollipop), TouchWiz UI |
| CPU | Quad-core 1.4 GHz Cortex-A7 | |
| GPU | Mali-400MP4 | |
| Chipset | Exynos 3470 Quad | |
| Memory | Internal | 16GB 1.5GB RAM |
| Card slot | microSDXC (dedicated slot) | |
| Main Camera | Video | 1080p@30fps |
| Single | 8 MP, f/2.4, 31mm (standard), AF | |
| Features | LED flash, HDR, panorama | |
| Selfie camera | Video | 1080p@30fps |
| Single | 2.1 MP | |
| Sound | 3.5mm jack | Yes |
| Loudspeaker | Yes | |
| Comms | NFC | Yes (LTE model only) |
| USB | microUSB 2.0 | |
| WLAN | Wi-Fi 802.11 a/b/g/n, dual-band, Wi-Fi Direct, hotspot | |
| Radio | No | |
| Bluetooth | 4.0, A2DP, EDR, LE, aptX | |
| Positioning | GPS, GLONASS | |
| Infrared port | Yes | |
| Features | Sensors | Fingerprint (front-mounted), accelerometer, gyro, proximity, compass, heart rate |
| Battery | Type | Li-Ion 2100 mAh, removable |
| Talk time | Up to 10 h (3G) | |
| Music play | Up to 47 h | |
| Misc | SAR | 0.63 W/kg (head) 0.82 W/kg (body) |
| Price | About 220 EUR | |

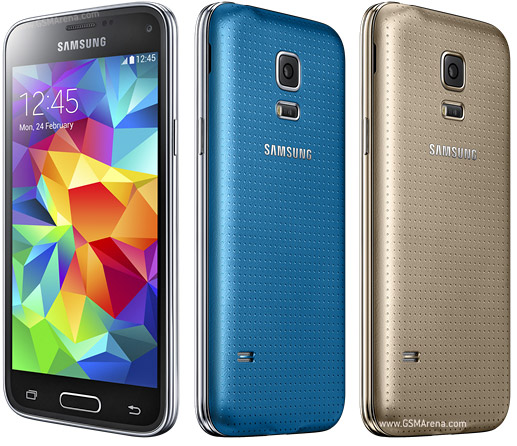

| Colors | Charcoal Black, Shimmery White, Electric Blue and Copper Gold | |
| Models | SM-G800H, SM-G800F, SM-G800M, SM-G800Y | |
| SAR EU | 0.97 W/kg (head) 0.56 W/kg (body) | |
| Our Tests | Camera | Photo / Video |
| Display | Contrast ratio: Infinite (nominal), 3.174 (sunlight) | |
| Loudspeaker | Voice 73dB / Noise 67dB / Ring 78dB | |
| Performance | Basemark X: 2665 | |
| Audio quality | Noise -92.6dB / Crosstalk -94.0dB | |
| Battery (old) | Endurance rating 72h |
