Complete specification
| Section | Specification | Details |
|---|---|---|
| Network | Speed | HSPA, LTE |
| 2G bands | GSM 850 / 900 / 1800 / 1900 | |
| 3G bands | HSDPA 850 / 900 / 1700(AWS) / 1900 / 2100 | |
| 4G bands | 1, 2, 3, 4, 5, 7, 8, 12, 13, 17, 20, 26, 28, 38, 40, 41, 66 | |
| Technology | GSM / HSPA / LTE | |
| Launch | Status | Available. Released 2020, February 03 |
| Announced | 2020, January 03 | |
| Body | SIM | · Nano-SIM · Nano-SIM + Nano-SIM |

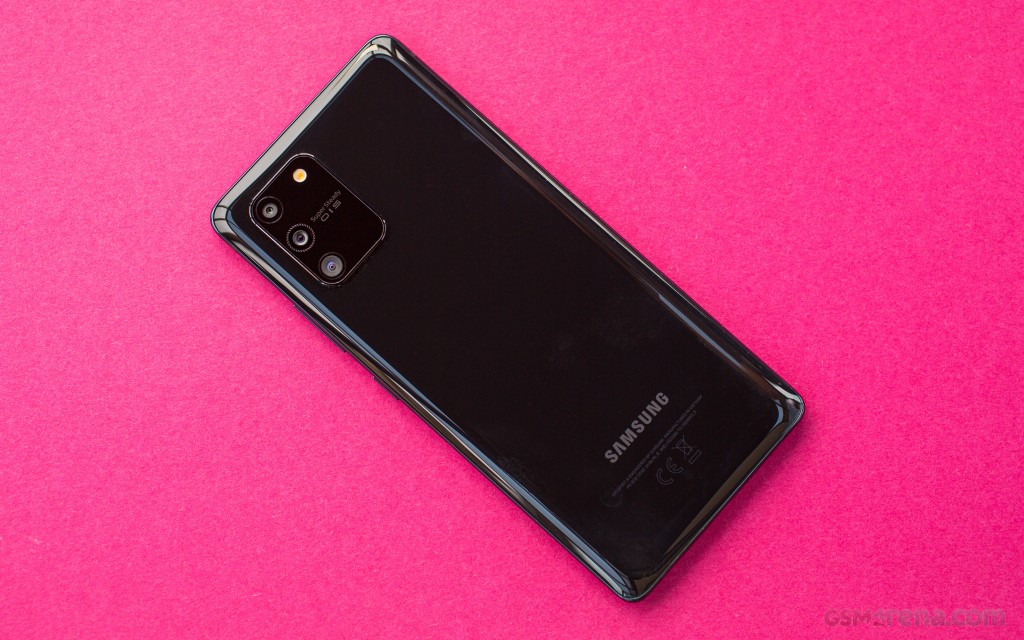

| Build | Glass front (Gorilla Glass 3+), aluminum frame, plastic back | |
| Weight | 186 g (6.56 oz) | |
| Dimensions | 162.5 x 75.6 x 8.1 mm (6.40 x 2.98 x 0.32 in) | |

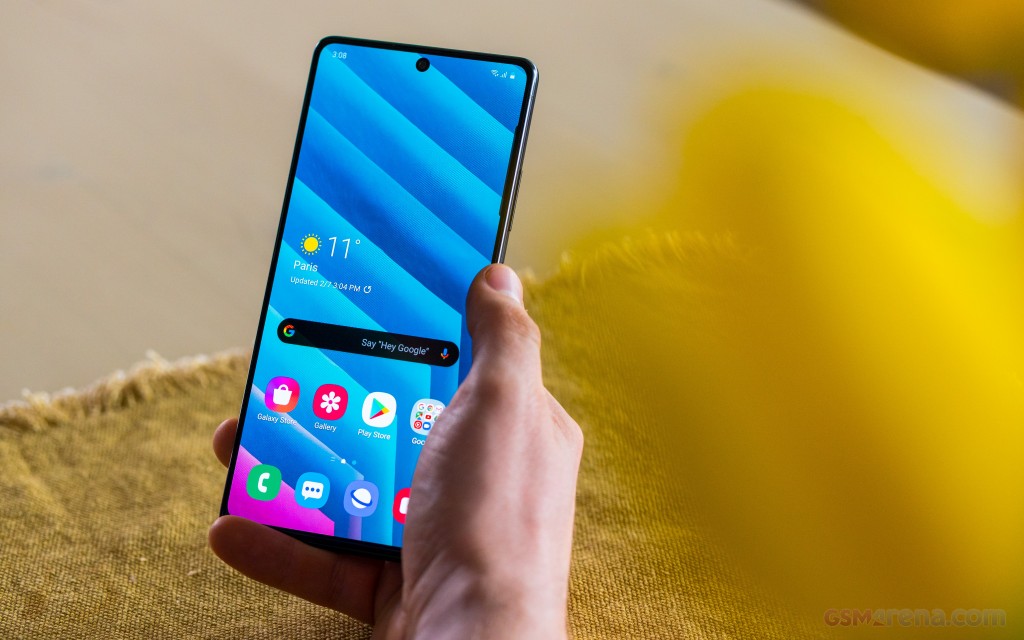

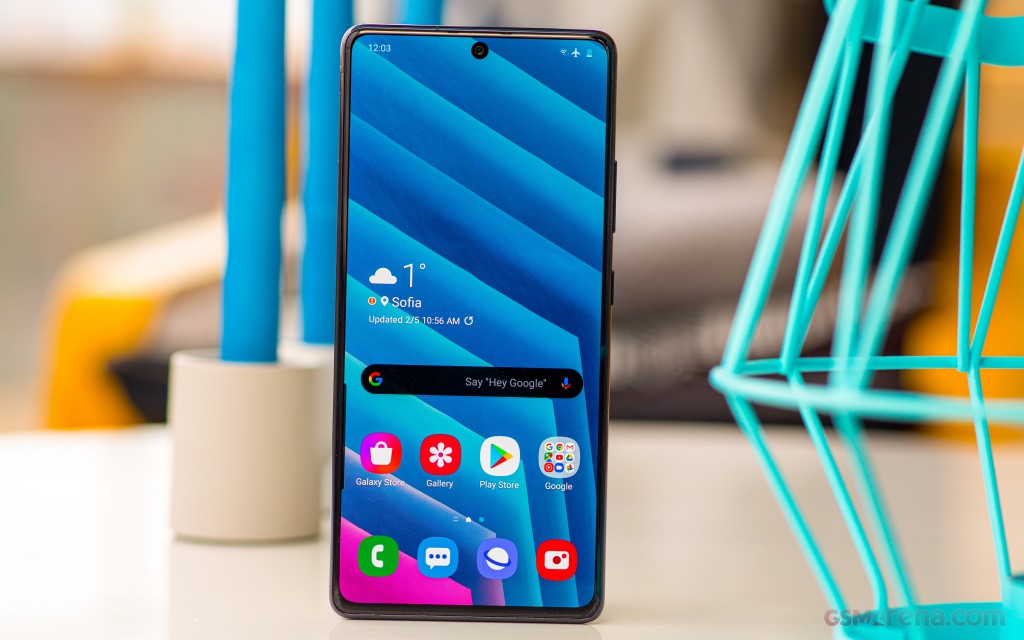

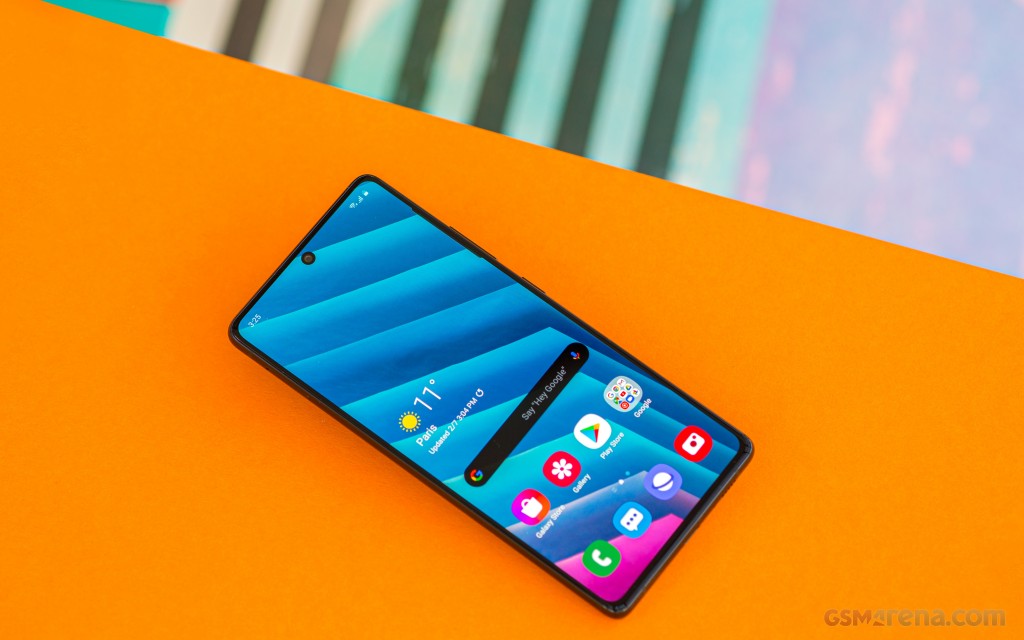

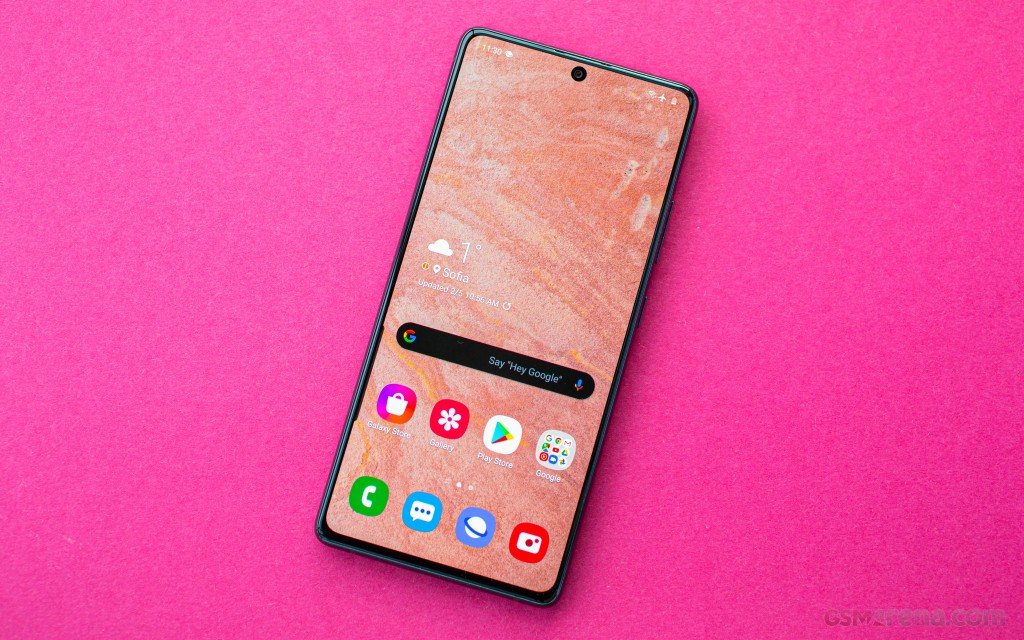

| Display | Size | 6.7 inches, 107.8 cm2 (~87.8% screen-to-body ratio) |
| Type | Super AMOLED Plus, HDR10+ | |
| Protection | Corning Gorilla Glass 3+ | |
| Resolution | 1080 x 2400 pixels, 20:9 ratio (~394 ppi density) | |
| Platform | OS | Android 10, upgradable to Android 13, One UI 5 |
| CPU | Octa-core (1x2.84 GHz Kryo 485 & 3x2.42 GHz Kryo 485 & 4x1.78 GHz Kryo 485) | |
| GPU | Adreno 640 | |
| Chipset | Qualcomm SM8150 Snapdragon 855 (7 nm) | |
| Memory | Internal | 128GB 6GB RAM, 128GB 8GB RAM, 512GB 8GB RAM |
| Card slot | microSDXC (uses shared SIM slot) | |
| [memoryother] | UFS 2.1 | |
| Main Camera | Video | 4K@30/60fps, 1080p@30/60/240fps; gyro-EIS |

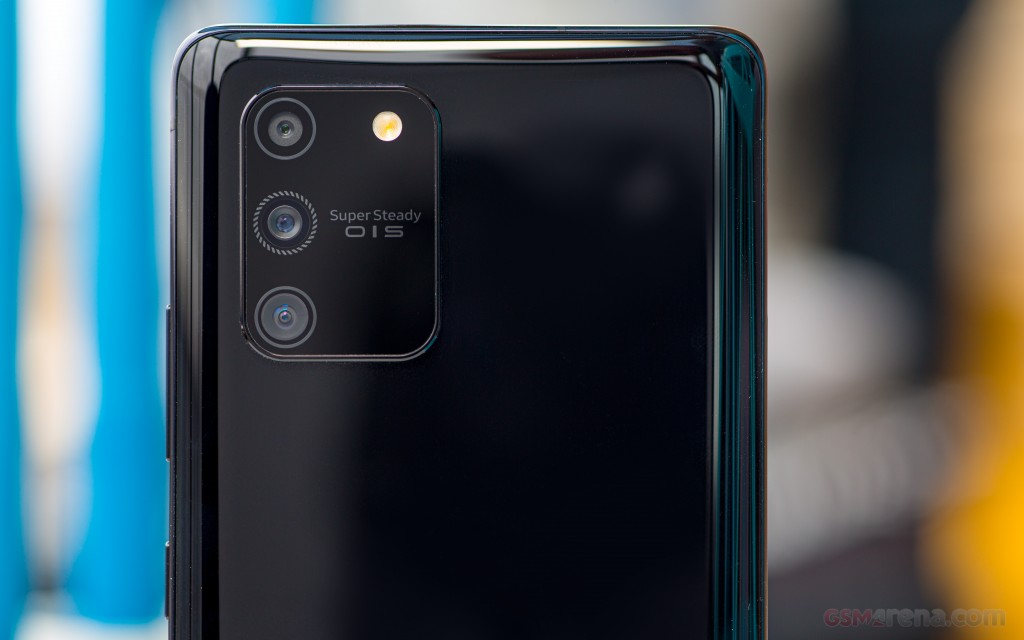

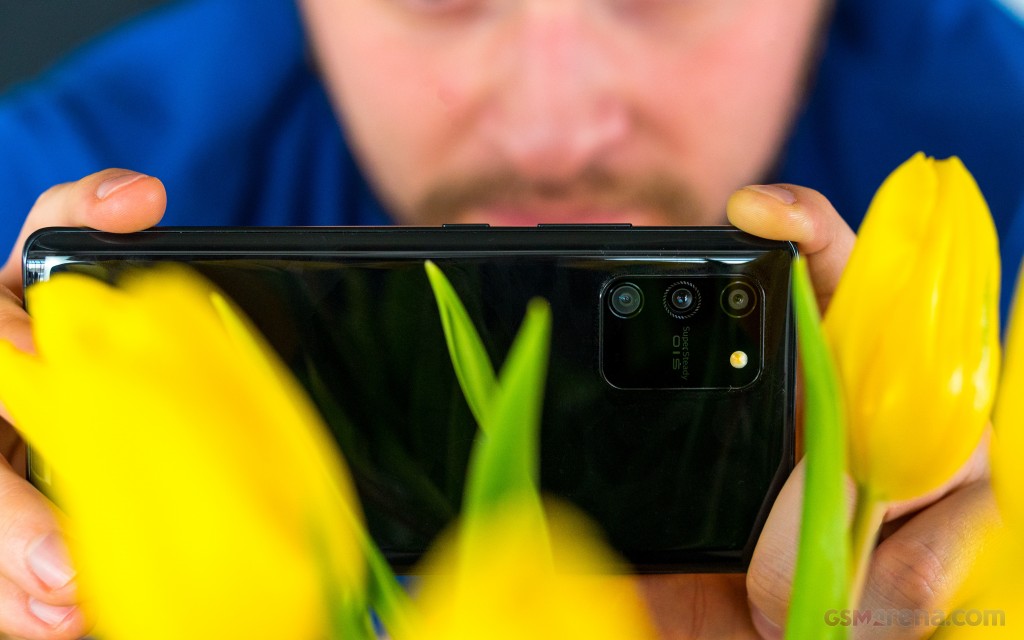

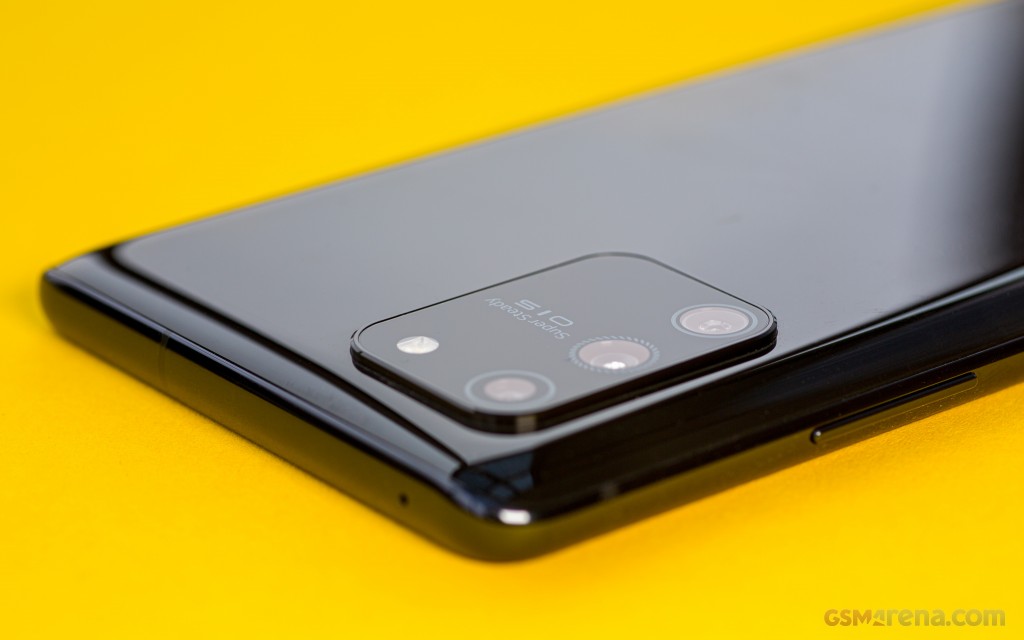

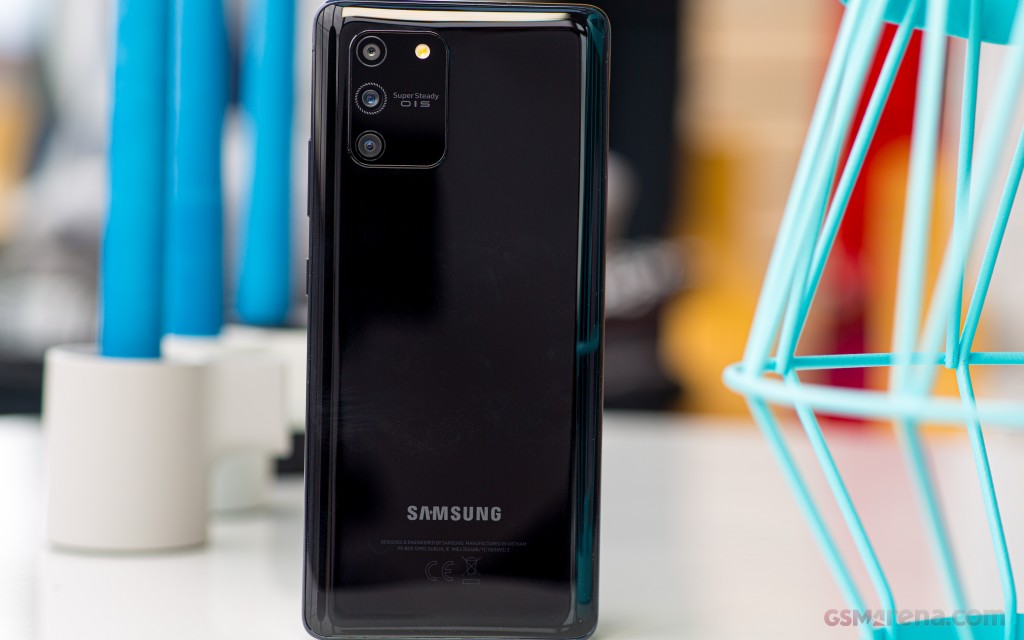

| Triple | 48 MP, f/2.0, 26mm (wide), 1/2.0", 0.8µm, PDAF, Super Steady OIS 12 MP, f/2.2, 12mm (ultrawide) 5 MP (macro) | |
| Features | LED flash, panorama, HDR | |
| Selfie camera | Video | 1080p@30fps |

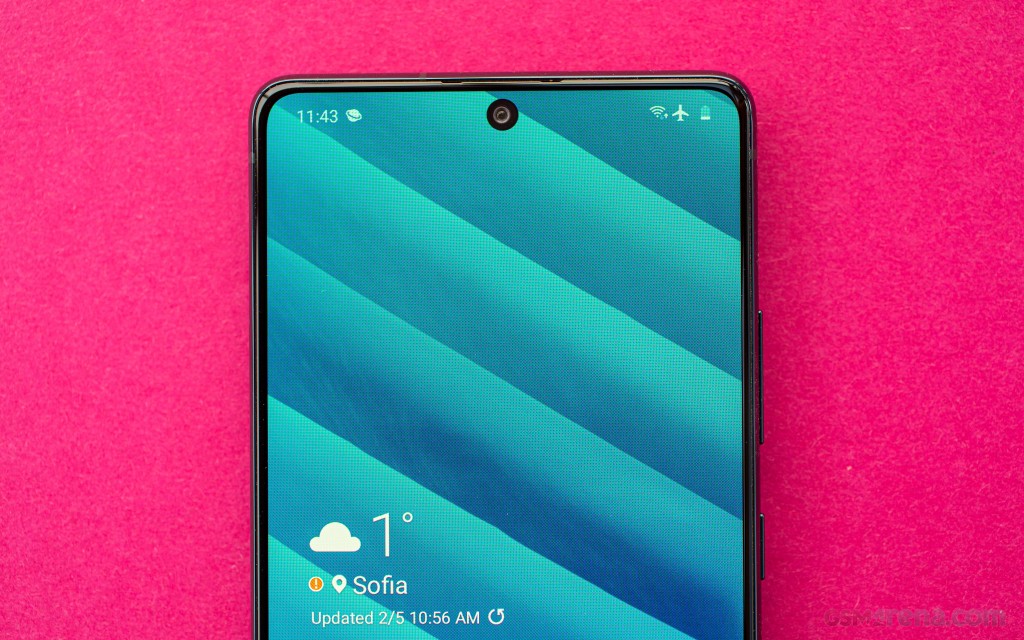

| Single | 32 MP, f/2.2, 25mm (wide), 1/2.8", 0.8µm | |
| Features | HDR | |
| Sound | 3.5mm jack | No |
| Loudspeaker | Yes | |
| Comms | NFC | Yes |

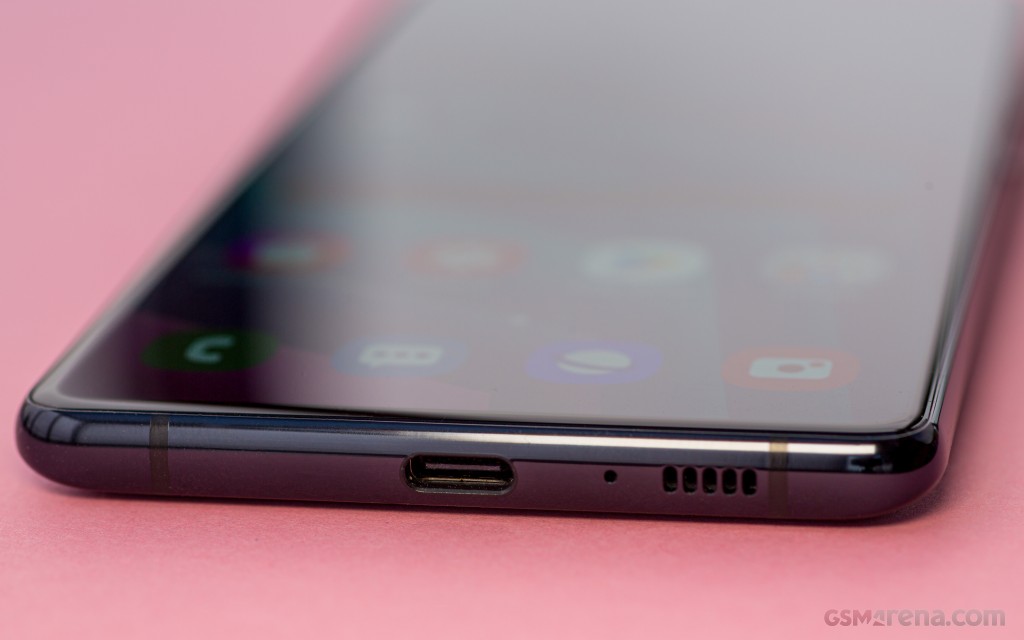

| USB | USB Type-C 2.0 | |
| WLAN | Wi-Fi 802.11 a/b/g/n/ac, dual-band, Wi-Fi Direct | |
| Radio | FM radio (market/region dependent) | |
| Bluetooth | 5.0, A2DP, LE | |
| Positioning | GPS, GLONASS, GALILEO, BDS | |

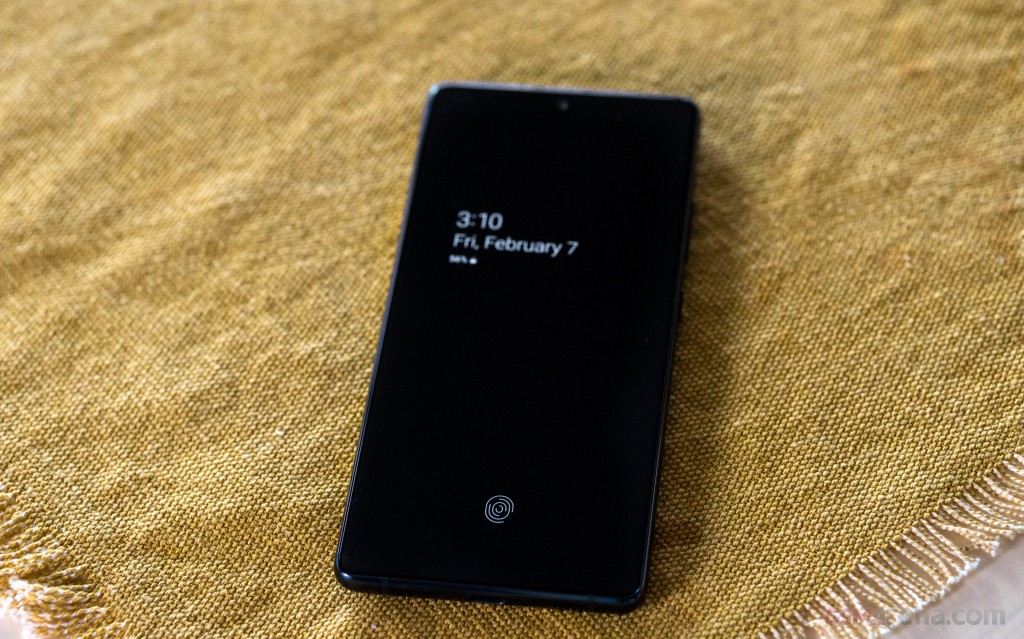

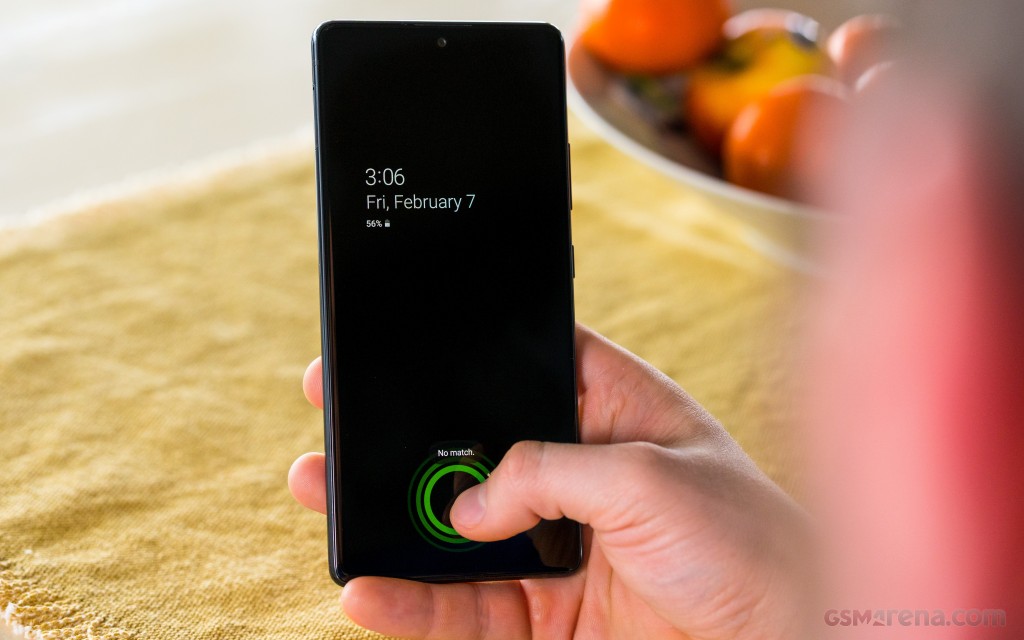

| Features | Sensors | Fingerprint (under display, optical), accelerometer, gyro, proximity, compass |
| [featuresother] | ANT+ | |
| Battery | Type | Li-Po 4500 mAh, non-removable |
| Charging | 45W wired | |
| Misc | SAR | 0.69 W/kg (head) 0.93 W/kg (body) |
| Price | About 380 EUR | |

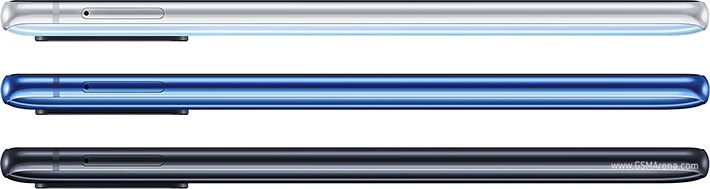

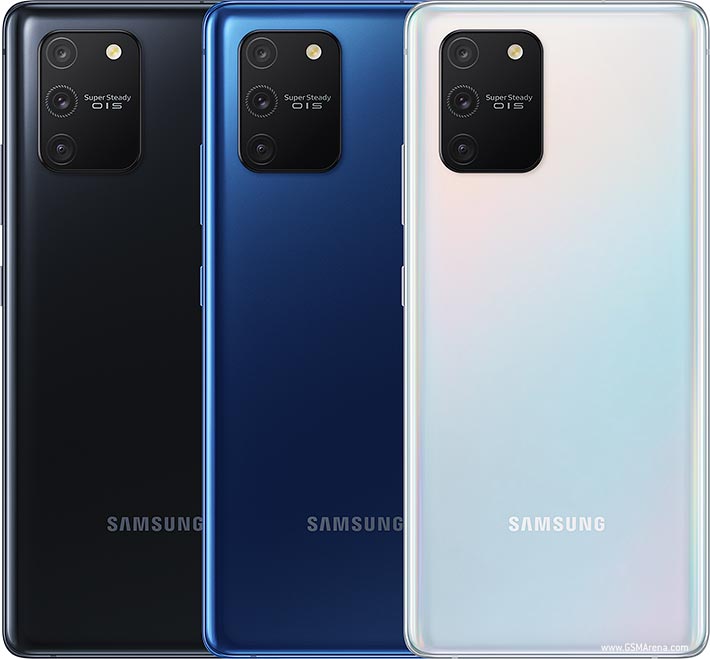

| Colors | Prism White, Prism Black, Prism Blue | |
| Models | SM-G770F, SM-G770F/DS, SM-G770F/DSM, SM-G770U1 | |
| SAR EU | 0.49 W/kg (head) 1.52 W/kg (body) | |
| Our Tests | Camera | Photo / Video |
| Display | 705 nits max brightness (measured) | |
| Loudspeaker | -27.2 LUFS (Good) | |
| Performance | AnTuTu: 370751 (v7), 459497 (v8) GeekBench: 11151 (v4.4), 2732 (v5.1) GFXBench: 56fps (ES 3.1 onscreen) | |
| Audio quality | Noise -93.7dB / Crosstalk -94.7dB | |
| Battery (old) | Endurance rating 110h |
