Complete specification
| Section | Specification | Details |
|---|---|---|
| Network | Speed | HSPA 42.2/5.76 Mbps, LTE (3CA) Cat9/Cat10 or LTE (3CA) Cat12 600/150 Mbps |
| 2G bands | GSM 850 / 900 / 1800 / 1900 - SIM 1 & SIM 2 (dual-SIM model only) | |
| 3G bands | HSDPA 850 / 900 / 1900 / 2100 | |
| 4G bands | LTE | |
| Technology | GSM / HSPA / LTE | |
| Launch | Status | Discontinued |
| Announced | 2016, August. Released 2016, September | |
| Body | SIM | · Nano-SIM · Nano-SIM + Nano-SIM |
| Build | Glass front (Gorilla Glass 5), glass back (Gorilla Glass 5), aluminum frame | |
| Weight | 169 g (5.96 oz) | |
| Dimensions | 153.5 x 73.9 x 7.9 mm (6.04 x 2.91 x 0.31 in) | |
| [bodyother] | IP68 dust tight and water resistant (immersible up to 1.5m for 30 min) Stylus | |
| Display | Size | 5.7 inches, 88.5 cm2 (~78.0% screen-to-body ratio) |
| Type | Super AMOLED, HDR10 | |
| Protection | Corning Gorilla Glass 5 | |
| Resolution | 1440 x 2560 pixels, 16:9 ratio (~518 ppi density) | |
| Platform | OS | Android 6.0.1 (Marshmallow), TouchWiz UI |
| CPU | Octa-core (4x2.3 GHz Mongoose & 4x1.6 GHz Cortex-A53) | |
| GPU | Mali-T880 MP12 | |
| Chipset | Exynos 8890 Octa (14 nm) | |
| Memory | Internal | 64GB 4GB RAM |
| Card slot | microSDXC (uses shared SIM slot) - dual SIM model only | |
| [memoryother] | UFS 2.0 | |
| Main Camera | Video | 4K@30fps, 1080p@30/60fps, 720p@240fps, stereo sound rec., HDR, gyro-EIS |
| Single | 12 MP, f/1.7, 26mm (wide), 1/2.55", 1.4µm, dual pixel PDAF, OIS | |
| Features | LED flash, auto-HDR, panorama | |
| Selfie camera | Dual | 5 MP, f/1.7, 22mm (wide) 2 MP (dedicated iris scanner camera) |
| Features | HDR | |
| Sound | 3.5mm jack | Yes |
| Loudspeaker | Yes | |
| [optionalother] | 24-bit/192kHz audio | |
| Comms | NFC | Yes |
| USB | USB Type-C 3.1 | |
| WLAN | Wi-Fi 802.11 a/b/g/n/ac, dual-band, Wi-Fi Direct | |
| Radio | No | |
| Bluetooth | 4.2, A2DP, EDR, LE | |
| Positioning | GPS, GLONASS, BDS, GALILEO | |
| Features | Sensors | Iris scanner, fingerprint (front-mounted), accelerometer, gyro, proximity, compass, barometer, heart rate, SpO2 |
| [featuresother] | ANT+ S-Voice natural language commands and dictation Samsung Pay (Visa, MasterCard certified) | |
| Battery | Type | Li-Ion 3500 mAh, non-removable |
| Charging | 15W wired, QC2 Wireless (Qi) (market dependent) | |
| Misc | Price | About 850 EUR |

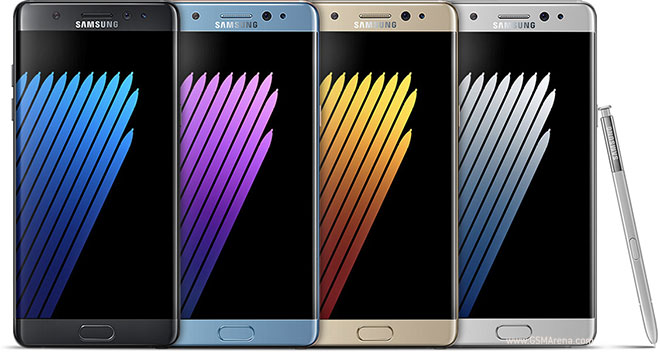

| Colors | Blue Coral, Gold Platinum, Silver Titanium, Black Onyx | |
| Models | SM-N930V, SM-N930A, SM-N930P, SM-N930T, SM-N930R4, SM-N930W8, SM-N930F, SM-N930G, SM-N930S | |
| SAR EU | 0.25 W/kg (head) 1.28 W/kg (body) | |
| Our Tests | Camera | Photo / Video |
| Display | Contrast ratio: Infinite (nominal), 4.247 (sunlight) | |
| Loudspeaker | Voice 69dB / Noise 69dB / Ring 72dB | |
| Performance | Basemark OS II 2.0: 2676 Basemark X: 32648 | |
| Audio quality | Noise -92.8dB / Crosstalk -92.9dB | |
| Battery (old) | Endurance rating 90h |
