Complete specification
| Section | Specification | Details |
|---|---|---|
| Network | Speed | HSPA 42.2/5.76 Mbps, LTE (3CA) Cat11 600/75 Mbps |
| 2G bands | GSM 850 / 900 / 1800 / 1900 - SIM 1 & SIM 2 (dual-SIM model only) | |
| 3G bands | HSDPA 850 / 900 / 1700(AWS) / 1900 / 2100 | |
| 4G bands | 1, 2, 3, 4, 5, 7, 8, 12, 13, 17, 18, 19, 20, 26, 28, 38, 40, 41, 66 | |
| Technology | GSM / HSPA / LTE | |
| Launch | Status | Discontinued |
| Announced | 2017, December. Released 2018, January | |
| Body | SIM | · Nano-SIM · Nano-SIM + Nano-SIM |
| Build | Glass front (Gorilla Glass 4), glass back (Gorilla Glass 5), aluminum frame | |
| Weight | 172 g (6.07 oz) | |
| Dimensions | 149.2 x 70.6 x 8.4 mm (5.87 x 2.78 x 0.33 in) | |
| [bodyother] | IP68 dust tight and water resistant (immersible up to 1.5m for 30 min) | |
| Display | Size | 5.6 inches, 79.6 cm2 (~75.6% screen-to-body ratio) |
| Type | Super AMOLED | |
| Protection | Corning Gorilla Glass 4 | |
| Resolution | 1080 x 2220 pixels, 18.5:9 ratio (~441 ppi density) | |
| Platform | OS | Android 7.1.1 (Nougat), upgradable to Android 9.0 (Pie), One UI |
| CPU | Octa-core (2x2.2 GHz Cortex-A73 & 6x1.6 GHz Cortex-A53) | |
| GPU | Mali-G71 | |
| Chipset | Exynos 7885 (14 nm) | |
| Memory | Internal | 32GB 4GB RAM, 64GB 4GB RAM |
| Card slot | microSDXC (dedicated slot) | |
| [memoryother] | eMMC 5.1 | |
| Main Camera | Video | 1080p@30fps |
| Single | 16 MP, f/1.7, 26mm (wide), 1/2.8”, 1.12µm, PDAF | |
| Features | LED flash, panorama, HDR | |
| Selfie camera | Dual | 16 MP, f/1.9, 26mm (wide), 1/3.06", 1.0µm 8 MP, f/1.9, 24mm (wide), 1/4.0", 1.12µm |
| Video | 1080p@30fps | |
| Sound | 3.5mm jack | Yes |
| Loudspeaker | Yes | |
| [optionalother] | 24-bit/192kHz audio | |
| Comms | NFC | Yes |
| USB | USB Type-C 2.0 | |
| WLAN | Wi-Fi 802.11 a/b/g/n/ac, dual-band, Wi-Fi Direct | |
| Radio | FM radio | |
| Bluetooth | 5.0, A2DP, EDR, LE | |
| Positioning | GPS, GLONASS, BDS | |
| Features | Sensors | Fingerprint (rear-mounted), accelerometer, gyro, proximity, compass, barometer |
| [featuresother] | ANT+ Samsung Pay | |
| Battery | Type | Li-Ion 3000 mAh, non-removable |
| Charging | 18W wired | |
| Talk time | Up to 24 h (3G) | |
| Music play | Up to 66 h | |
| Misc | Price | About 250 EUR |

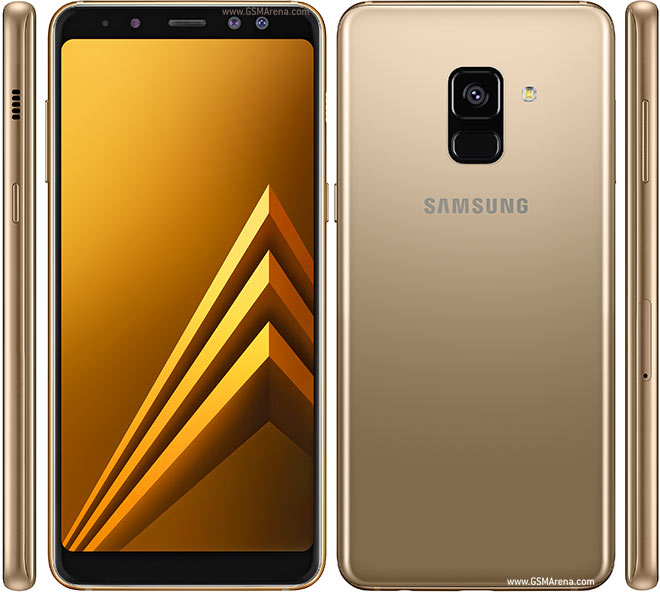

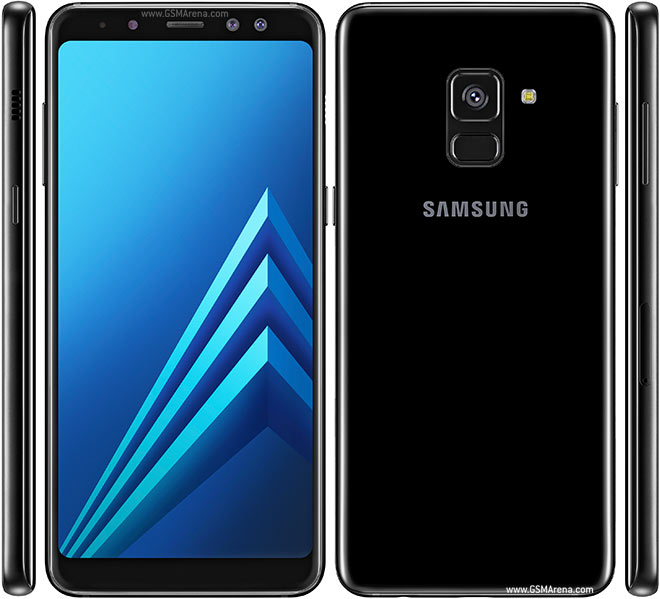

| Colors | Black, orchid grey, gold, blue | |
| Models | SM-A530F, SM-A530F, SM-A530K, SM-A530L, SM-A530S, SM-A530N, SM-A530W | |
| SAR EU | 0.24 W/kg (head) 1.25 W/kg (body) | |
| Our Tests | Camera | Photo / Video |
| Display | Contrast ratio: Infinity (nominal), 3.842 (sunlight) | |
| Loudspeaker | Voice 69dB / Noise 70dB / Ring 81dB | |
| Performance | GeekBench: 4418 (v4.4) GFXBench: 5.2fps (ES 3.1 onscreen) | |
| Audio quality | Noise -92.1dB / Crosstalk -90.0dB | |
| Battery (old) | Endurance rating 92h |
