Complete specification
| Section | Specification | Details |
|---|---|---|
| Network | Speed | HSPA, LTE |
| 2G bands | GSM 850 / 900 / 1800 / 1900 | |
| 3G bands | HSDPA 850 / 900 / 1900 / 2100 | |
| 4G bands | 1, 3, 5, 7, 8, 20, 38, 40, 41 | |
| Technology | GSM / HSPA / LTE | |
| Launch | Status | Discontinued |
| Announced | 2019, February 25. Released 2019, March 18 | |
| Body | SIM | · Nano-SIM · Nano-SIM + Nano-SIM |
| Build | Glass front (Gorilla Glass 3), plastic back, plastic frame | |
| Weight | 166 g (5.86 oz) | |
| Dimensions | 158.5 x 74.7 x 7.7 mm (6.24 x 2.94 x 0.30 in) | |
| Display | Size | 6.4 inches, 100.5 cm2 (~84.9% screen-to-body ratio) |
| Type | Super AMOLED | |
| Protection | Corning Gorilla Glass 3 | |
| Resolution | 1080 x 2340 pixels, 19.5:9 ratio (~403 ppi density) | |
| Platform | OS | Android 9.0 (Pie), upgradable to Android 11, One UI 3.0 |
| CPU | Octa-core (4x2.3 GHz Cortex-A73 & 4x1.7 GHz Cortex-A53) | |
| GPU | Mali-G72 MP3 | |
| Chipset | Exynos 9610 (10 nm) | |
| Memory | Internal | 64GB 4GB RAM, 64GB 6GB RAM, 128GB 4GB RAM, 128GB 6GB RAM |
| Card slot | microSDXC (dedicated slot) | |
| [memoryother] | UFS 2.1 | |
| Main Camera | Video | 1080p@30fps |
| Triple | 25 MP, f/1.7, 26mm (wide), PDAF 8 MP, f/2.2, 13mm (ultrawide), 1/4.0", 1.12µm Auxiliary lens | |
| Features | LED flash, panorama, HDR | |
| Selfie camera | Video | 1080p@30fps |
| Single | 25 MP, f/2.0, 25mm (wide), 1/2.8", 0.9µm | |
| Features | HDR | |
| Sound | 3.5mm jack | Yes |
| Loudspeaker | Yes | |
| Comms | NFC | Yes (market dependent) |
| USB | USB Type-C 2.0, OTG | |
| WLAN | Wi-Fi 802.11 a/b/g/n/ac, dual-band, Wi-Fi Direct | |
| Radio | FM radio | |
| Bluetooth | 5.0, A2DP, LE | |
| Positioning | GPS, GLONASS, GALILEO, BDS | |
| Features | Sensors | Fingerprint (under display, optical), accelerometer, gyro, proximity, compass |
| [featuresother] | ANT+ Bixby natural language commands and dictation | |
| Battery | Type | Li-Po 4000 mAh, non-removable |
| Charging | 15W wired | |
| Misc | SAR | 1.31 W/kg (head) 0.58 W/kg (body) |
| Price | About 270 EUR | |

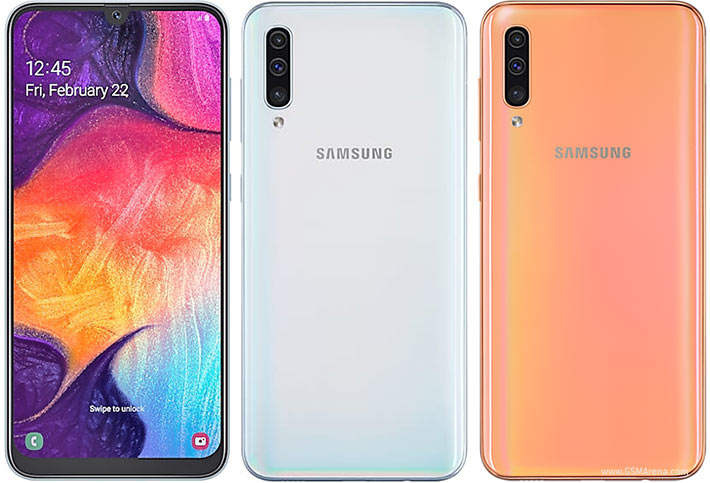

| Colors | Black, White, Blue, Coral | |
| Models | SM-A505F, SM-A505FN, SM-A505GN, SM-A505G, SM-A505FM, SM-A505YN, SM-A505W, SM-A505X, SM-A505U, SM-A505GT, SM-A505U1, SM-A505G, SM-A505N, SM-S506DL | |
| SAR EU | 0.27 W/kg (head) 1.39 W/kg (body) | |
| Our Tests | Camera | Photo / Video |
| Display | 551 nits max brightness (measured) | |
| Loudspeaker | Voice 68dB / Noise 71dB / Ring 82dB | |
| Performance | AnTuTu: 144574 (v7) GeekBench: 5396 (v4.4) GFXBench: 8fps (ES 3.1 onscreen) | |
| Audio quality | Noise -93.4dB / Crosstalk -92.3dB | |
| Battery (old) | Endurance rating 98h |
