Complete specification
| Section | Specification | Details |
|---|---|---|
| Network | Speed | HSPA, LTE |
| 2G bands | GSM 850 / 900 / 1800 / 1900 - SIM 1 & SIM 2 (dual-SIM model only) | |
| 3G bands | HSDPA 850 / 900 / 1900 / 2100 | |
| 4G bands | 1, 3, 5, 7, 8, 19, 20, 28, 38, 40, 41 | |
| Technology | GSM / HSPA / LTE | |
| Launch | Status | Discontinued |
| Announced | 2017, June. Released 2017, June | |
| Body | SIM | · Nano-SIM · Nano-SIM + Nano-SIM |
| Build | Glass front (Gorilla Glass 3), aluminum back, aluminum frame | |
| Weight | 145 g (5.11 oz) | |
| Dimensions | 156.2 x 76.2 x 6 mm (6.15 x 3.00 x 0.24 in) | |
| [bodyother] | Splash and dust resistant | |
| Display | Size | 5.5 inches, 83.4 cm2 (~70.1% screen-to-body ratio) |
| Type | Super AMOLED | |
| Protection | Corning Gorilla Glass 3 | |
| Resolution | 1080 x 1920 pixels, 16:9 ratio (~401 ppi density) | |
| Platform | OS | Android 7.1.1 (Nougat), upgradable to Android 9.0 (Pie) |
| CPU | Octa-core 2.2 GHz Cortex-A53 | |
| GPU | Adreno 506 | |
| Chipset | Qualcomm MSM8953-Pro Snapdragon 626 (14 nm) | |
| Memory | Internal | 32GB 3GB RAM, 64GB 4GB RAM |
| Card slot | microSDXC (dedicated slot) | |
| [memoryother] | eMMC 5.1 | |
| Main Camera | Video | 4K@30fps, 1080p@60fps, 720p@120fps |
| Single | 12 MP, f/1.7, 1/2.55", 1.4µm, dual pixel PDAF | |
| Features | Laser AF, Dual-LED dual-tone flash, panorama | |
| Selfie camera | Video | 1080p@30fps |
| Single | 5 MP, f/2.2, 1/4.0", 1.4µm | |
| Features | Dual-LED dual-tone flash | |
| Sound | 3.5mm jack | Yes |
| Loudspeaker | Yes | |
| Comms | NFC | Yes |
| USB | USB Type-C 3.1, OTG, magnetic connector | |
| WLAN | Wi-Fi 802.11 a/b/g/n, Wi-Fi Direct | |
| Radio | FM radio | |
| Bluetooth | 4.2, A2DP, EDR, LE, aptX | |
| Positioning | GPS, GLONASS | |
| Features | Sensors | Fingerprint (front-mounted), accelerometer, gyro, proximity, compass |

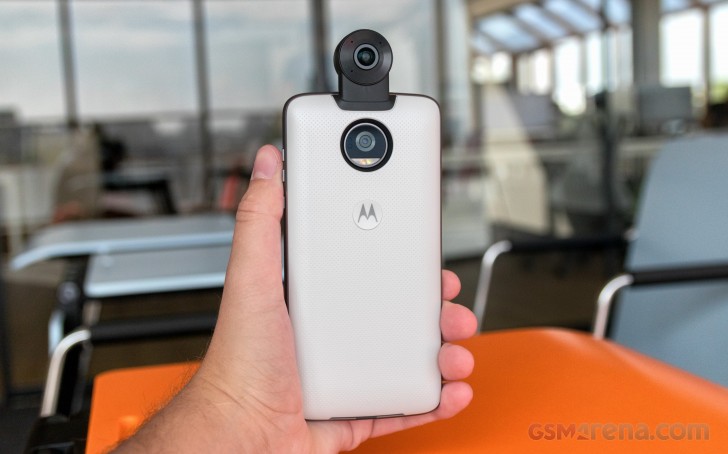

| [featuresother] | Moto Mods snap-on accessories | |
| Battery | Type | Li-Ion 3000 mAh, non-removable |
| Charging | 15W wired, 50% in 30 min | |
| Talk time | Up to 30 h (3G) | |
| Misc | SAR | 1.30 W/kg (head) 1.20 W/kg (body) |
| Price | About 230 EUR | |
| Colors | Lunar Gray, Fine Gold, Nimbus Blue | |
| Models | XT1710-09, XT1710-10, XT1710-07, XT1710-07, XT1710-01, XT1710-02, XT1710-08 | |
| SAR EU | 0.67 W/kg (head) 1.68 W/kg (body) | |
| Our Tests | Camera | Photo / Video |
| Display | Contrast ratio: Infinite (nominal), 4.459 (sunlight) | |
| Loudspeaker | Voice 66dB / Noise 70dB / Ring 85dB | |
| Performance | GFXBench: 3.8fps (ES 3.1 onscreen) | |
| Audio quality | Noise -93.4dB / Crosstalk -94.4dB | |
| Battery (old) | Endurance rating 76h |
